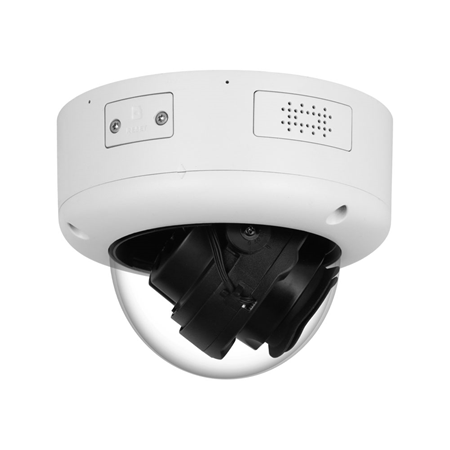

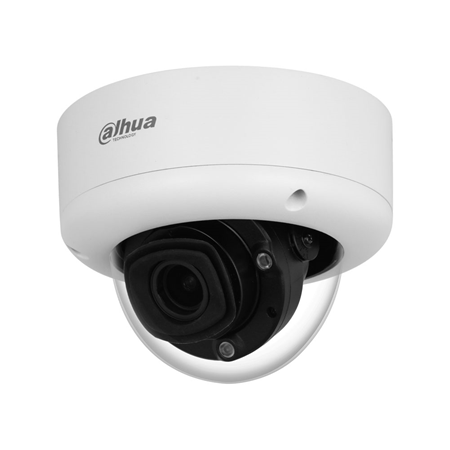

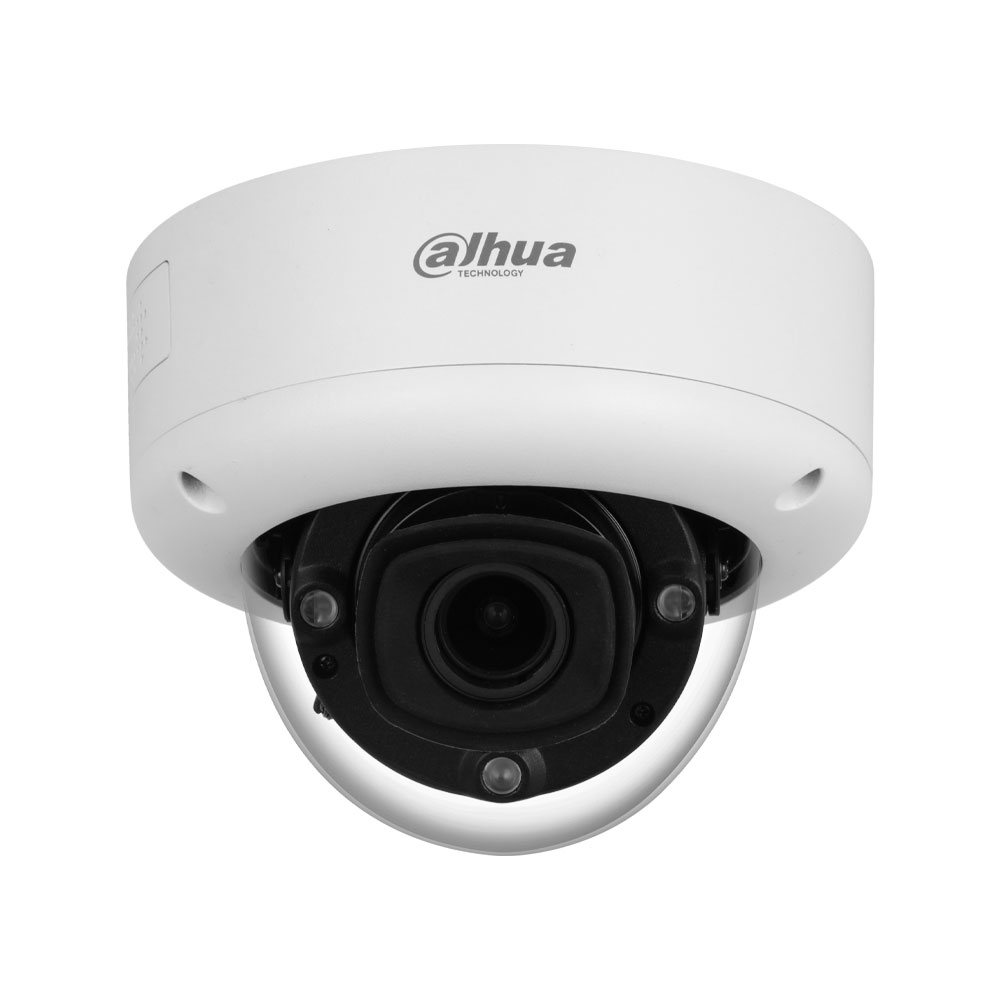

Dahua WizMind 7 8MP IP mini dome with IR, advanced AI and audio for outdoor use

Technical Specifications

• Dahua WizMind 7 8-megapixel IP mini-dome camera
• 1/1.8" CMOS sensor with progressive scan
• Maximum resolution of 8MP (3840x2160)
• Minimum illumination of 0.0006 lux at F1.2 in color, 0.0003 lux at F1.2 in B/W, and 0 lux with illuminator activated
• Signal-to-noise ratio >56 dB
• IR illumination up to 40 m with 3 IR LEDs
• Day/night mode with removable mechanical ICR filter
• Varifocal lens Motorized 2.7–12 mm
• Maximum aperture F1.2 with P-Iris
• Horizontal field of view 105° ~ 48°, vertical 55° ~ 27°, and diagonal 124° ~ 55°
• DORI range in wide-angle mode: 87.6 m for detection, 35 m for observation, 17.5 m for recognition, and 8.8 m for identification
• DORI range in telephoto mode: 186.6 m for detection, 74.6 m for observation, 37.3 m for recognition, and 18.7 m for identification

Video Stream / Video

• Video compression: H.265, H.264, H.264H, H.264B, and MJPEG (substream only)
• Smart H.265+ and Smart H.264+
• Capacity for 5 streams
• Stream 1: 8MP (3840x2160) at 1–25/30 fps by default and 1–50/60 fps in high-frame-rate mode
• Stream 2: 1080P (1920x1080) at 1–25/30 fps
• Stream 3: 1080P (1920x1080) at 1–25/30 fps
• Stream 4: 1080P (1920x1080) at 1–25/30 fps
• Stream 5: D1 (704x576) at 1–25 fps or D1 (704x480) at 1–30 fps
• H.264 video bitrate from 32 kbps to 16384 kbps and H.265 from 12 kbps to 12800 kbps

Functionalities

• AI-ISP for automatic image adaptation to the scene
• BLC, HLC, 140 dB WDR, SSA, white balance, gain control, and 3D NR
• Electronic image stabilization (EIS), Defog, and image mirroring and rotation at 0°, 90°, 180°, and 270°
• Smart Illumination, 4-area ROI, 4-area motion detection, and 8-area privacy mask
• LDC and EPTZ
• Privacy Protection with automatic face or body masking

Smart Features

• Allows two smart functions to be activated simultaneously
• IVS with intrusion, line crossing, fast motion, loitering, crowd gathering, parking detection, and privacy
• Accurate classification of vehicles, animals, and people for intrusion, line crossing, and rapid movement
• Facial detection with tracking, capture, image optimization, facial exposure, and extraction of 6 attributes and 8 expressions
• Facial recognition with general mode and counting mode, up to 5 databases, and comparison with up to 200,000 facial images
• PPE detection with attributes including work clothes, helmet, cap, mask, apron, gloves, shoe covers, boots, safety vest, and belt
• People counting via line crossing, area counting, and queue management with reports
• Heat map, ANPR, parking space management, video metadata, Smart Search, and AcuPick
• ANPR with license plate, vehicle type, vehicle color, seat belt, smoking, and phone calls

Audio

• Includes dual microphones
• Includes a large-diameter Hi-Fi speaker with a 20-meter audio range
• Two-way audio with 1 RCA audio input and 1 RCA audio output
• Sound Management with Dahua noise reduction, voice pickup, and non-human voice filtering
• Audio compression: G.711a, G.711Mu, PCM, G.726, and G.723

Storage

• MicroSD card slot supporting up to 1 TB (card not included)
• Storage via FTP, SFTP, and NAS

Alarms

• 3 wet-contact alarm inputs rated at 5 mA, 3 V – 5 V DC
• 2 dry-contact alarm outputs: 1000 mA at 30 V DC or 500 mA at 50 V AC
• Alarm events: SD card, network, unauthorized access, motion, video tampering, intelligent analytics, audio, defocus, external alarm, and security exception

Communication Interface

• RS-485 port with a baud rate range of 1200 bps to 115,200 bps
• CVBS analog output via BNC

Network

• RJ45 10/100/1000 Base-T port
• Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Profile M, and Auto Register
• Compatible with ONVIF Profile S, Profile G, Profile T, and Profile M, CGI, and P2P
• SDK and API available
• Up to 20 users with a total bandwidth of 340 M
• Compatible with SmartPSS Lite, DSS, DMSS, iOS, and Android

Power

• Powered by 12 V DC, 24 V AC, PoE+ 802.3at, and ePoE
• 12 V DC power output with a maximum current of 165 mA and a peak of 700 mA
• Basic power consumption of 6.6 W at 12 V DC, 9.3 W at 24 V AC, and 9.8 W via PoE
• Maximum power consumption of 18.7 W at 12 V DC, 24.8 W at 24 V AC, and 25.2 W via PoE
• Heater power consumption: 3 W at 12 V DC, 4.6 W at 24 V AC, and 5.47 W via PoE

Environmental

• Operating temperature: -40 °C to +65 °C
• Operating humidity ≤95%
• Storage temperature: -40 °C to +65 °C
• Storage humidity: 10% to 95%
• IP67 and IK10 protection

Physical Characteristics

• Metal and plastic housing
• Dimensions: 118.0 mm x Φ159.0 mm
• Net weight: 1.16 kg
• Gross weight: 1.36 kg
• 3AXIS: 0°–355° PAN, 0°–80° TILT, and 0°–355° rotation

Contents

• Dahua WizMind 7 IP Mini-Dome DAHUA-4720 (DH-IPC-HDBW7842E1P-Z-2712F-DC12AC24V-X)

Certifications and Standards

• CE-LVD EN62368-1
• CE-EMC Electromagnetic Compatibility Directive 2014/30/EU
• FCC 47 CFR FCC Part 15, Subpart B
• UL/CUL UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
