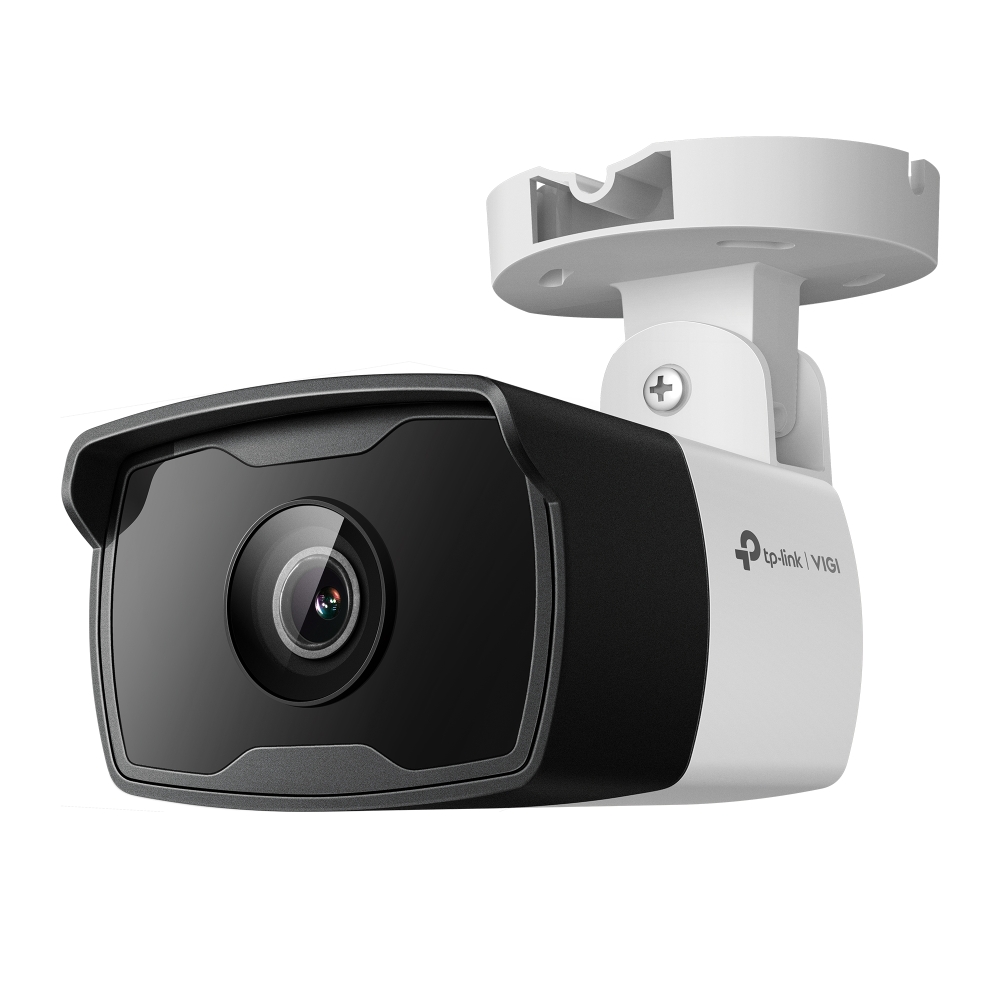

TP-Link VIGI 3MP Bullet IP Camera for outdoor applications

Technical Features

• TP-Link VIGI IP bullet camera
• 1/2.8" progressive scan CMOS sensor
• Maximum resolution of 3MP (2304 × 1296)
• Day & Night mechanical IR Cut (ICR) filter
• Minimum illumination: 0.01 lux (color) and 0 lux with IR
• Infrared illumination with 2 IR LEDs and range up to 50 m (164 ft)
• Fixed lens 2.8 mm
• Angle of view: H 97.8°, V 52.9°, D 117.9°.

Video stream

• Stream 1 Resolutions: 2304 × 1296, 2048 × 1280, 1920 × 1080, 1280 × 720
• Stream 1: 3MP@25 ips
• Stream 2: D1@25 fps
• Stream 2 Resolutions: 704 × 576, 640 × 480, 352 × 288, 320 × 240
• CBR and VBR bitrate control
• Stream 1 Compression: H.265+/H.265/H.264+/H.264
• Stream 2 compression: H.265/H.264

Features

• DWDR
• 3D DNR
• BLC and HLC
• Smart IR
• 90° and 270° image rotation
• Up to 4 configurable privacy masks

Intelligent functions

• Classification of people and vehicles from camera
• Intrusion detection
• Line crossing
• Region entry and exit
• Abandoned and removed object detection
• Anomalous sound detection
• Camera tampering detection

Audio

• Built-in microphone
• G.711 alaw audio compression
• 8 kHz sampling rate
• Ambient noise filtering

Network

• RJ45 10/100 Mbps network interface
• Network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP, SFTP, RTP, IPv4, IPv6, ARP
• ONVIF Profile S support
• Simultaneous display of up to 3 main streams and 3 substreams
• Supported software and apps: VIGI App, VIGI Security Manager, VIGI NVR and web browser

Power supply

• PoE (IEEE 802.3af/at), Class 0
• Power supply 12 V DC ±5%.
• Maximum power consumption 5 W

Environmental

• Operating temperature -30 °C to 60 °C (-22 °F to 140 °F)
• IP67 protection

Physical characteristics

• Material: plastic
• Wall, ceiling or pole installation
• 3AXIS: Pan 0°~360°, Tilt 0°~90°, Rotate 0°~360°
• Dimension: 78.5 × 188.03 × 71.55 mm

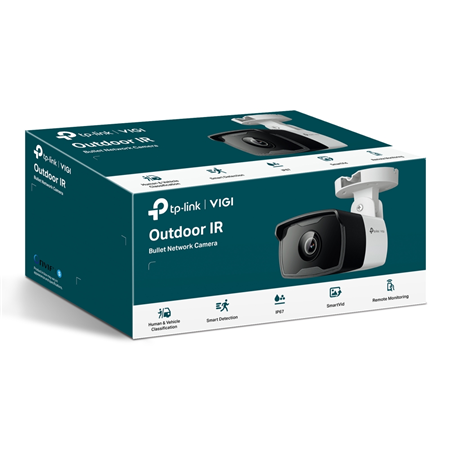

Contents

• 3MP IR bullet IP camera with 2.8mm Fixed lens TPLINK-291 (VIGI C330I)
• Mounting accessories
• Waterproof cabling accessories
• Quick start guide

Certifications

• CE
• BSMI
• VCCI
• ONVIF
