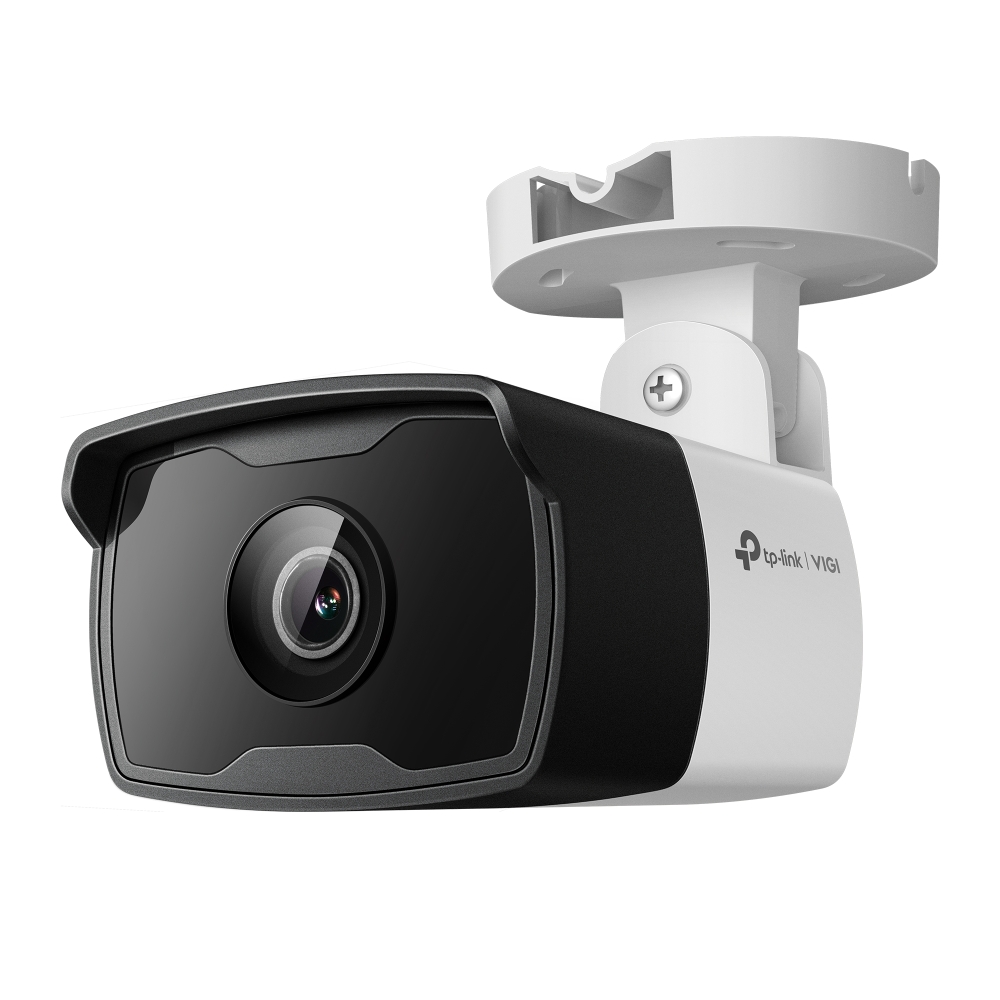

TP-Link VIGI 3MP Bullet IP Camera for outdoor applications

Technical Features

• TP-Link VIGI IP bullet camera
• 1/2.8" progressive scan CMOS sensor
• Maximum resolution of 3MP (2304×1296)
• Day/night mechanical IR Cut (ICR) filter
• Minimum illumination of 0.01 lux in color and 0 lux with IR
• Infrared illumination with Smart IR and range up to 50 m (164 ft)
• Fixed lens 4 mm
• Viewing angle: 82.8° horizontal, 44.5° vertical and 98.1° diagonal

Video Stream

• H.265+, H.265, H.264+ and H.264 video compression
• Stream 1: 3MP@25 fps
• Stream 1 resolutions: 2304×1296, 2048×1280, 1920×1080, 1280×720
• Stream 2: D1@25 ips
• Stream 2 Resolutions: 704×576, 640×480, 352×288, 320×240
• CBR and VBR bitrate control

Features

• DWDR for backlight compensation
• 3D DNR digital noise reduction
• Configurable BLC and HLC
• Smart IR for nighttime illumination optimization
• 90° and 270° image rotation
• Up to 4 privacy masks

Intelligent features

• Classification of persons and vehicles from camera
• Intrusion detection
• Line crossing detection
• Region entry and exit detection
• Abandoned and removed object detection
• Anomalous sound detection
• Camera tampering detection

Audio

• Built-in microphone
• G.711 alaw audio compression
• 8 kHz sampling rate
• Ambient noise filtering

Network

• RJ45 10/100 Mbps network interface
• Network protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP, SFTP, RTP, IPv4, IPv6, ARP
• ONVIF Profile S support
• Simultaneous display of up to 3 main streams and 3 substreams
• Access via VIGI App, VIGI Security Manager, VIGI NVR and web browser

Power

• PoE (IEEE 802.3af/at), class 0
• Power supply 12 V DC ±5%.
• Maximum power consumption 5 W

Environmental

• Operating temperature -30 °C to 60 °C (-22 °F to 140 °F)
• IP67 protection

Physical characteristics

• Material: plastic
• Wall, ceiling or mast installation
• 3AXIS: Pan 0°~360°, Tilt 0°~90°, Rotate 0°~360°
• Dimension: 78.5 × 188.03 × 71.55 mm

Contents

• 3MP IR bullet IP camera with Fixed lens 4mm TPLINK-292 (VIGI C330I)
• Mounting accessories
• Waterproof cabling accessories
• Quick start guide

Certifications

• CE
• BSMI
• VCCI
• ONVIF
